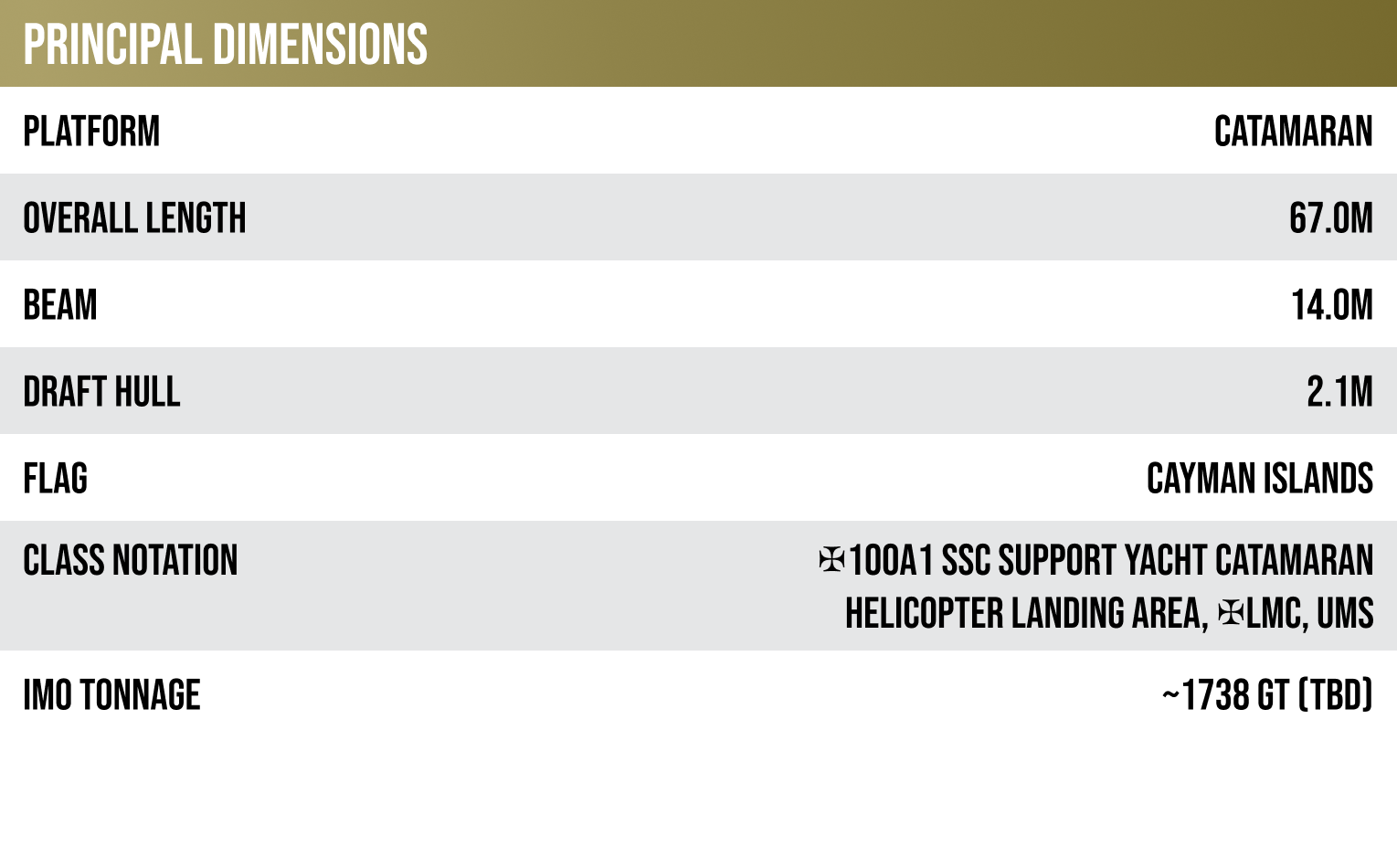

Principal dimensions table for a 67-meter catamaran support yacht, including 14-meter beam, 2.1-meter draft, Cayman Islands flag, class notation, and approximately 1,738 GT tonnage.

WAYPOINT

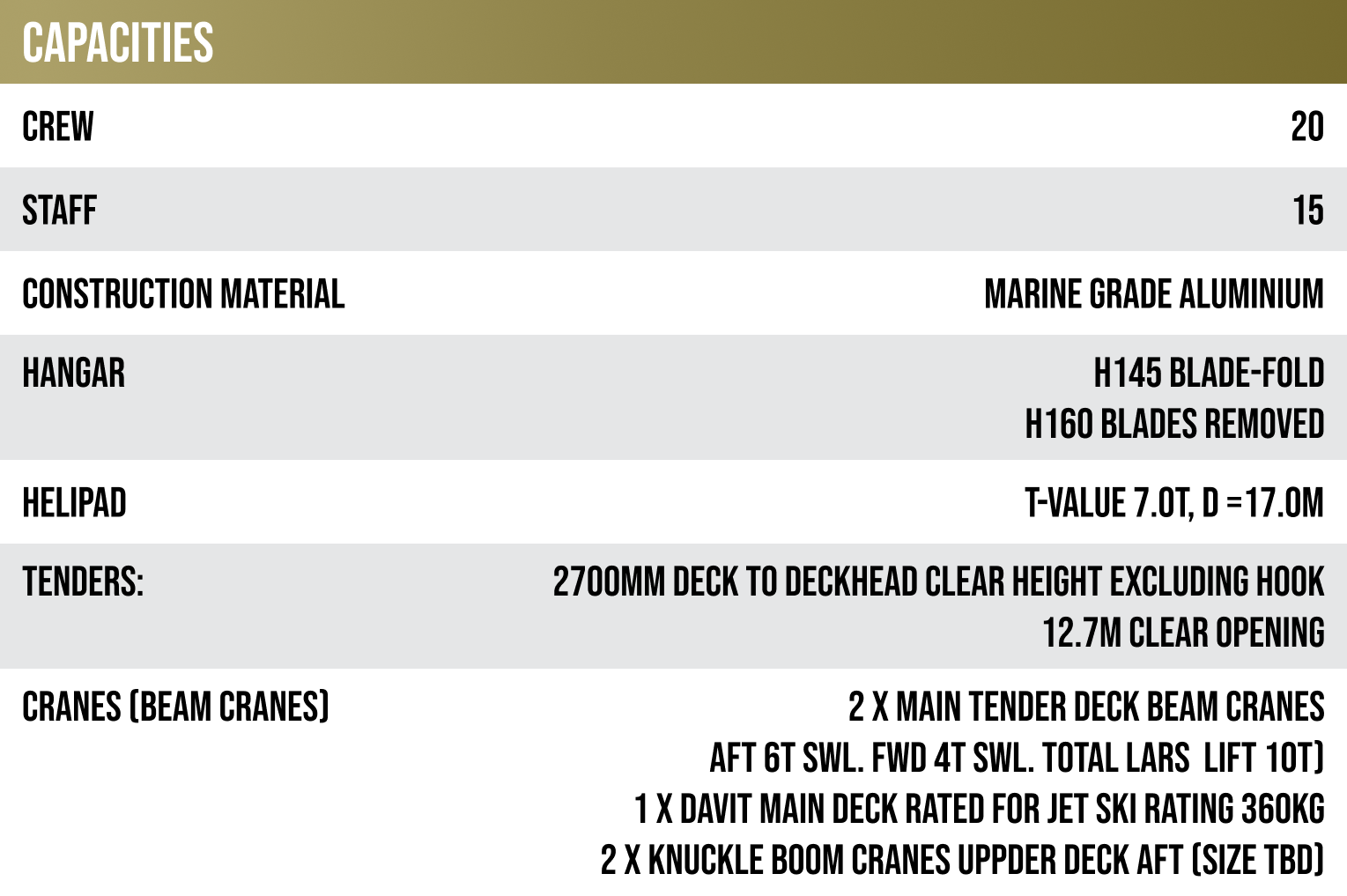

Vessel specifications table listing capacities, crew, staff, marine-grade aluminum construction, helicopter hangar and helipad details, tenders, and cranes.

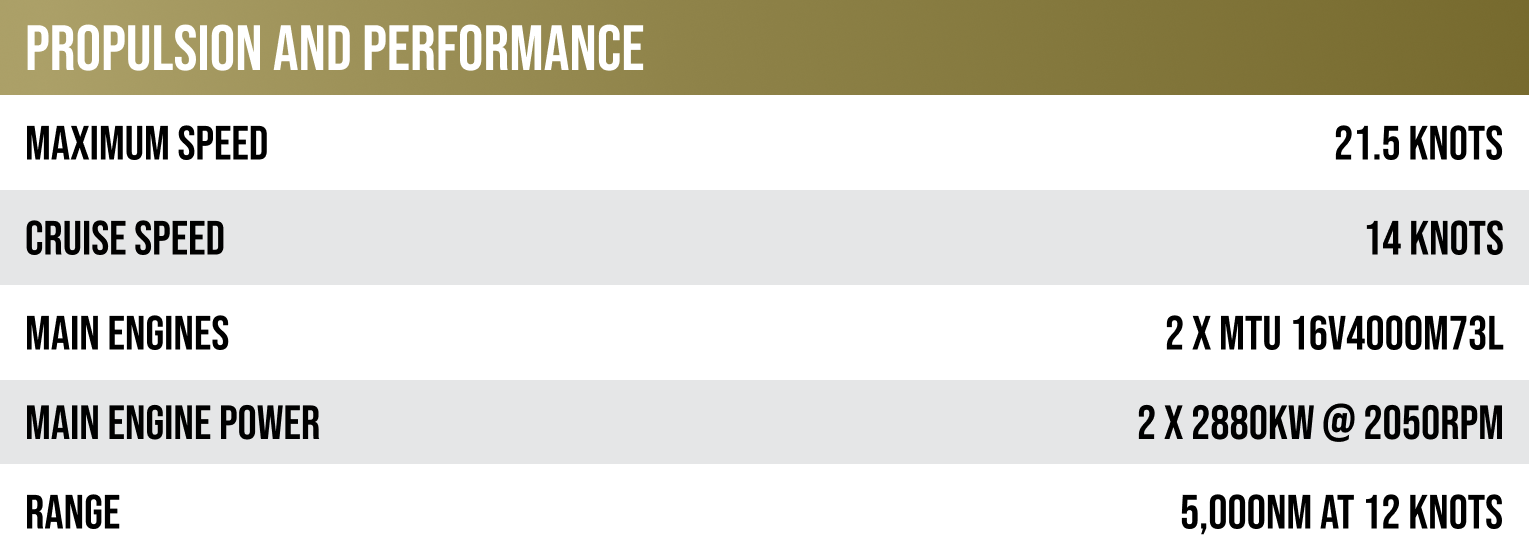

Propulsion and performance specifications: 21.5-knot maximum speed, 14-knot cruise speed, twin MTU 16V4000M73L engines, 2 x 2,880 kW at 2,050 RPM, and 5,000 nautical mile range at 12 knots.

BUILT FOR VERSATILITY

Waypoint is the most versatile model in the Foundation Series, balancing expedition capability with dedicated aviation support.

An integrated hangar accommodates an Airbus H160 with the blades removed, providing protection for the aircraft during extended passages while retaining generous capacity for tenders, equipment, crew and guests.

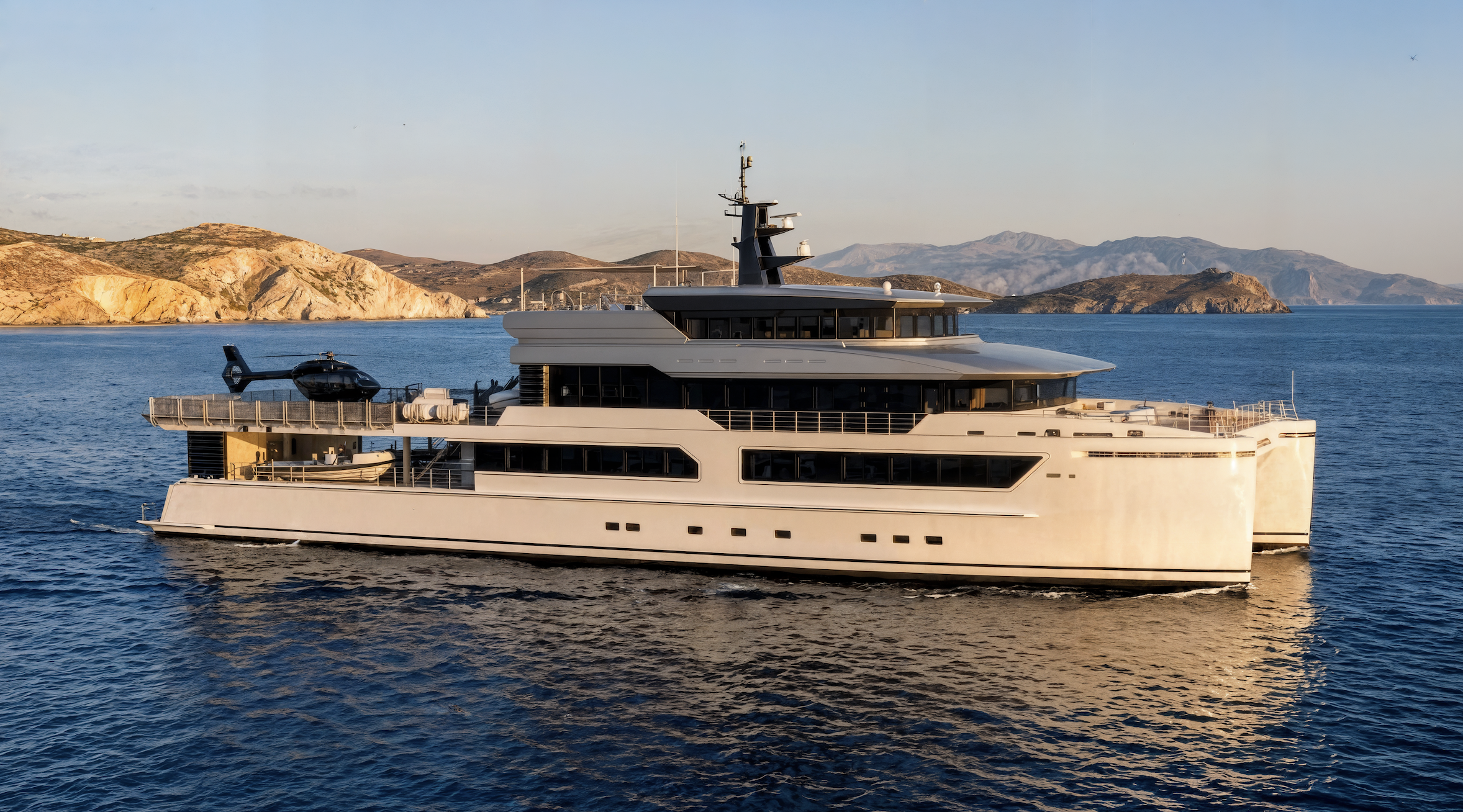

Luxury superyacht with a helicopter cruising past rugged Mediterranean islands

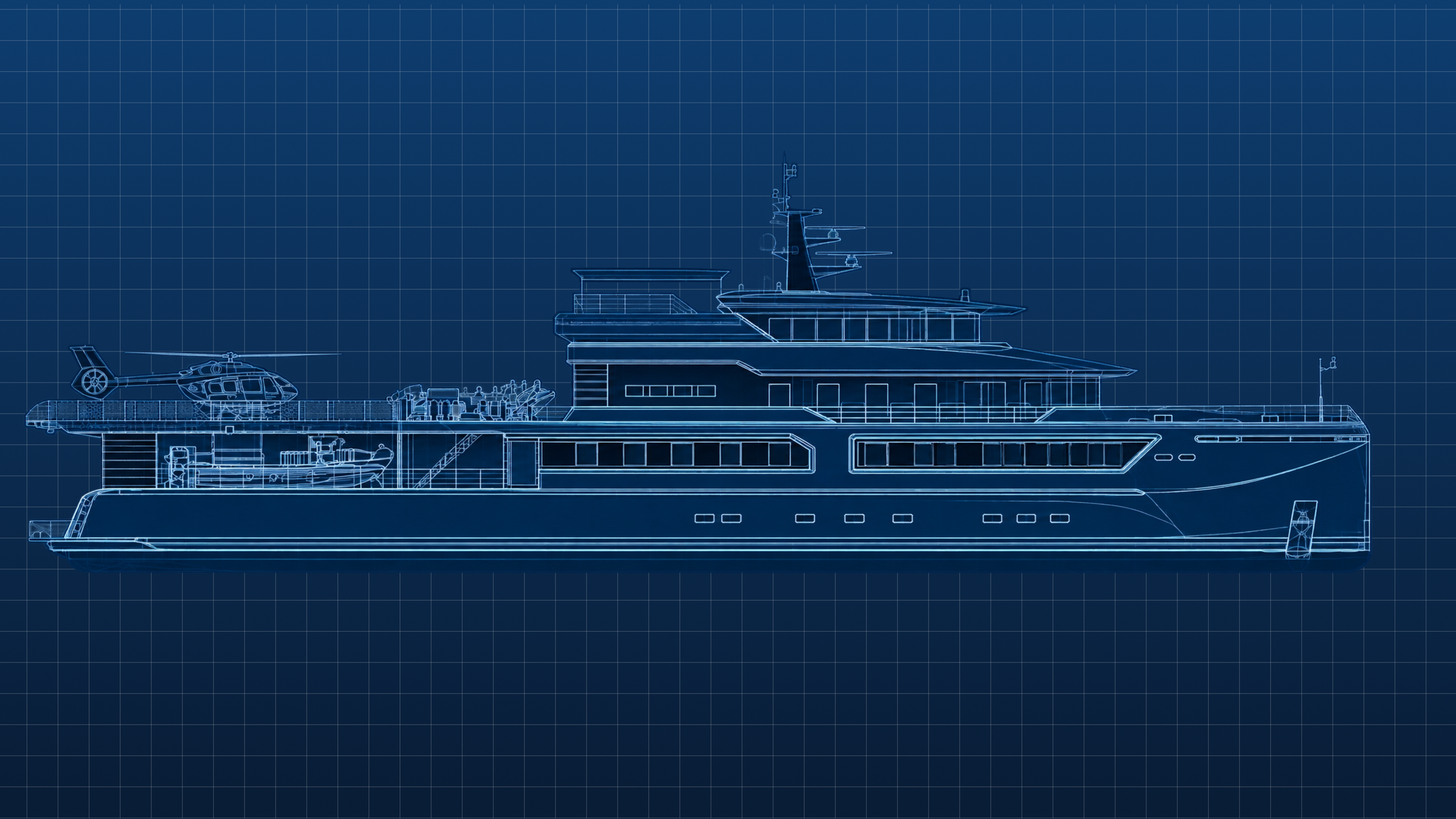

Blueprint-style side view of a luxury superyacht with a helicopter, tender boat, and multiple decks

the Foundation Series

Built on SHADOWCAT’s proven catamaran platform, Waypoint is designed for yacht programs that require the flexibility to move seamlessly between aviation, exploration and tender operations without allowing one capability to define the entire vessel.

Request information
